Features
Ideal for devices requiring precise press force control, such as electronic component probing and pickup
- High-response operation enables reduced takt time for devices
- Allows contact inspection without damaging the workpiece
- Repeated positioning accuracy ±0.3 μm
- Enables device miniaturization and greater design flexibility
Video
Ultra-high response direct drive motor + Z-axis ssLinear
Specifications and Dimensions

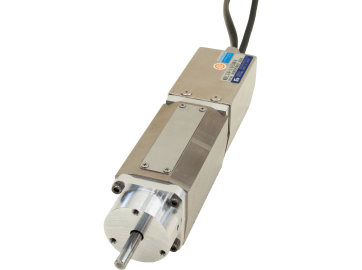

ssLinear Series individual Specifications and Dimensions
| Model *1 | SL | 40-10-38AED4NA-N-□ | 40-10-38ADD4NA-N-□ |
|---|---|---|---|
| Applicable power supply | DCV | 48 | 48 |
| Rated thrust | N | 38 | 38 |
| Maximum thrust | N | 80 | 80 |
| Rated output | W | 76 | 76 |
| Rated current | A | 3.14 | 3.14 |
| Rated speed | m/sec | 1 | 2 |
| Maximum speed | m/sec | 1 | 2 |
| Normal operating stroke | mm | 0～10 | 0～10 |
| Stroke between mechanical stoppers | mm | About -0.5 to 10.5 | |
| Encoder type | Incremental | ||
| Detection resolution | μm | 0.1 | 0.2 |
| Repeated positioning accuracy (in reciprocating motion)*2 | μm | ±0.3 | ±0.3 |
| Total weight | kg | 0.94 | 0.94 |
| Output shaft mounting load weight*1 | kg | 0.4 or less | |
| Paired driver model | |||
| VPH Series | NCR-HA | C201E-L-000-R004 | |
| Download dimensions | |||
| Model | SL | 40-10-38AED4NA-N-□ | 40-10-38ADD4NA-N-□ |
| Rated thrust | N | 38 | 38 |
| Dimensions | PDF DXF | ||
* The specification values are those obtained when a heat sink (aluminum plate) is mounted on the ssLinear and operated at an ambient temperature of 25°C. For details, refer to the specifications in the catalog.
* Note that to improve the product, ratings, specifications, dimensions, and other details may be changed without prior notice.
*1 For the □ of the model, refer to the table below. As an option, we provide a spring for suspending the output shaft to prevent accidents such as falling or collisions when the servo is turned OFF.
Based on the orientation of the output shaft, select from the circles (〇). Note that for a load of 0 kg, the purpose is to prevent the shaft from falling.
| □ in the model | Spring option | Load weight | When the output shaft is facing upward | When the output shaft is facing sideways | When the output shaft is facing downward |
|---|---|---|---|---|---|
| 0 | No | – | 〇 | 〇 | 〇*3 |
| 1 | Yes | 0kg | – | 〇*4 | 〇 |
| 2 | Yes | 0.2kg | – | – | 〇 |
| 3*5 | Yes | 0.4kg | – | – | 〇 |
*2 Repeated positioning accuracy is guaranteed only under constant cold temperature conditions.
*3 Note that the output shaft will fall when the servo is turned OFF.
*4 The output shaft can be retracted even with a load weight of 0.4 kg.
*5 This is not a standard feature. Contact our sales representative for inquiries.
Common specifications
| Ambient temperature for use | 0 to 25℃ |
| Ambient humidity for use | 85%RH or less, no condensation allowed |
| Installation location | Avoid any harmful atmosphere including corrosive gas, grinding oil, metal dust, and oil. Indoors, away from direct sunlight. |
| Sea level | Sea level: 1,000 m or less |
| Installation direction | Horizontal, vertical |
| Cooling method | Natural cooling |
| Insulation class | Class F |
| Insulation withstand voltage | 1000 VAC, 1 minute |
