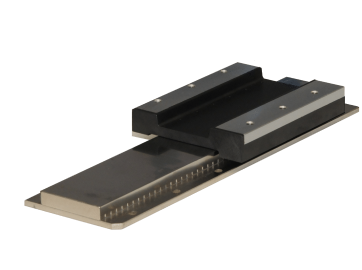

Features
Ideal for devices requiring speed stability
- The coil slide features a double-supported structure with a low center of gravity
- Customization, including water cooling and forced air cooling
- Supports EtherCAT, MECHATROLINK-III, and CC-Link
Video
2 head operation
Specifications and Dimensions
τLinear NVA-AM Type individual Specifications and Dimensions
| Motor model | NVA-AM | J30A2AV | A30A2BV | A30A2B | B30A2B | C30A2B | D30A2B | E30A2B | |
|---|---|---|---|---|---|---|---|---|---|
| Rated thrust | N | 13.8 | 23 | 23 | 45 | 68 | 90 | 135 | |
| Maximum thrust | N | 41.4 | 69 | 69 | 135 | 204 | 261 | 405 | |
| Rated output | W | 41 | 69 | 69 | 135 | 204 | 270 | 405 | |
| Rated current | A | 0.84 | 0.85 | 0.85 | 1.7 | 2.55 | 3.4 | 5.1 | |
| Maximum speed*1 | m/sec | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| Applicable power supply*2 | ACV | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Coil unit | Model | CLV-AM | J30A2AV | A30A2BV | A30A2B | B30A2B | C30A2B | D30A2B | E30A2B |
| Weight | kg | 0.17 | 0.24 | 0.24 | 0.48 | 0.72 | 0.96 | 1.44 | |
| Magnet base | Model | MBV-AM | Select from A00B (96 mm)/B00B (144 mm) | ||||||
| Weight | kg | A00B：0.6kg/B00B：0.9kg | |||||||
| Paired driver model | |||||||||
| VPH Series | NCR-H□ | 2101A-B-□□□ | 2101A-B-□□□ | 2101A-B-□□□ | 2201A-B-□□□ | 2401A-B-□□□ | 2401A-B-□□□ | 2801A-B-□□□ | |
| Download dimensions | |||||||||
| Motor model | NVA-AM | J30A2AV | A30A2BV | A30A2B | B30A2B | C30A2B | D30A2B | E30A2B | |
| Rated thrust | N | 13.8 | 23 | 23 | 45 | 68 | 90 | 135 | |
| Coil unit model | CLV-AM□**1 | PDF DXF STEP | PDF DXF STEP | PDF DXF STEP | PDF DXF STEP | PDF DXF STEP | PDF DXF STEP | PDF DXF STEP | |
| Magnet base model | MBV-AMA00A | PDF DXF STEP | |||||||
| MBV-AMB00B | PDF DXF STEP | ||||||||
* The specification values are those obtained when a heat sink (aluminum plate) is mounted on the coil unit and operated at an ambient temperature of 25°C. For details, refer to the individual specifications in the catalog.
*1 Maximum speed for the motor. The actual speed depends on the sensor resolution. Refer to the Linear encoders section in the τLinear servo motor catalog.
*2 It may be possible to combine with a 100 VAC specification servo driver. However, the rating will be reduced, so clarify the specifications and contact our sales representative.
**1 The □ of the coil unit model is the same as that of the motor model.
Common specifications
| Ambient temperature for use | 0 to 40℃ |
| Ambient humidity for use | 85%RH or less, no condensation allowed |
| Installation location | Avoid any harmful atmosphere including corrosive gas, grinding oil, metal dust, and oil. Indoors, away from direct sunlight. |
| Sea level | Sea level: 1,000 m or less |
| Installation direction | Horizontal, vertical |
| Cooling method | Natural cooling |
| Insulation class | Class F |
| Insulation withstand voltage | 1500 VAC, 1 minute |
| Vibration resistance | 1G (3 directions, 2 hours each) |
| Shock resistance | 5G (3 directions, 3 times each) |
